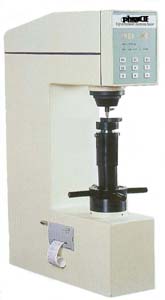

With its easy user-interface (UI), the Phase II 900-360 digital Rockwell Hardness Tester adopts a micro computer controller to automate testing procedures and achieve a dynamic level of precision that is only found at Phase II. |
This “state of the art” Hardness Tester offers programmable scale conversions, dwell times, statistical capabilities and test counter. Conforming to ASTM E-18 Rockwell Hardness Standards, this hardness tester presents unmatched repeatability in all Rockwell Hardness scales (see table below). The 900-360 is easy to operate, yet engineered to obtain highly sensitive and extremely accurate readings. A perfect performer suited for any environment including; heat treat facilities, tool rooms, workshops, laboratories and inspection labs. Lifetime technical support is included with all Phase II Hardness Testers. So test away with confidence and a level of accuracy you will only find at Phase II.
Features:
- Fully automated testing procedures affords highly sensitive and accurate readings
- Micro computer controlled with output to supplied mini printer
- Offers programmable scale conversions, dwell times, statistical capabilities and test counter
- Capable of testing in all of the regular Rockwell® scales
Specifications:
| Minor Load |
10 Kgf |
| Major Load |
60 Kgf, 100 Kgf, 150 KGF |
| Test Force Application |
Dead Weight |
| Test Force Control |
Motorized |
| Results Display |
Digital Readout |
| Vertical Capacity |
6.7 in. |
| Throat Depth |
6.6 in. |
| Height |
28 in. |
| Width |
8.9 in. |
| Depth |
19.6 in. |
| Shipping Weight |
242 lbs |
Accessories:
- C-scale Diamond Indenter
- 1/16” Ball Indenter
- 2- HRC test Blocks
- 1- HRB Test Block
- Built-in Mini Printer
- Test Table 5.87” (150mm)
- Flat Anvil 2.5” (63mm)
- Spot Anvil .38” (10mm)
- Std. Vee Anvil
- Accessory Case
- Dust Cover
|
 |
|
| Scale Symbol |
Indenter Type
Ball dimensions indicate diameter |
Preliminary Force
N (kgf) |
Total Force
N (kgf) |
Typical Application |
| A |
Spheroconical Diamond |
98.07 (10) |
588.4 (60) |
Cemented carbides, thin steel and shallow case hardened steel |
| B |
Ball 1/16" (1.588mm) |
98.07 (10) |
980.7 (100) |
Copper alloys, soft steels, alum. Alloys, malleable iron, etc. |
| C |
Spheroconical Diamond |
98.07 (10) |
1471 (150) |
Steel, hard cast irons,pearltic malleable iron, titanium, deep case hardened steel & other material harder than HRB 100 |
| D |
Spheroconical Diamond |
98.07 (10) |
980.7 (100) |
Thin steel and medium case hardened steel and pearlitic malleable iron |
| E |
Ball – 1/8" (3.175mm) |
98.07 (10) |
980.7 (100) |
Cast iron, aluminum & magnesium alloys and bearing metals |
| F |
Ball – 1/16" (1.588mm) |
98.07 (10) |
588.4 (60) |
Annealed copper alloys, and thin soft sheet metals |
| G |
Ball – 1/16" (1.588mm) |
98.07 (10) |
1471 (150) |
Malleable irons, copper-nckel-zinc and cupronickel alloys |
| H |
Ball – 1/8" (3.175mm) |
98.07 (10) |
588.4 (60) |
Aluminum, zinc and lead |
| K |
Ball – 1/8" (3.175mm) |
98.07 (10) |
1471 (150) |
Bearing metals and other very soft or thin materials. Use smallest ball and heaviest load that does not give anvil effect |
| L |
Ball – 1/4" (6.350mm) |
98.07 (10) |
588.4 (60) |
| M |
Ball – 1/4" (6.350mm) |
98.07 (10) |
980.7 (100) |
| P |
Ball – 1/4" (6.350mm) |
98.07 (10) |
1471 (150) |
| R |
Ball – 1/2" (12.70mm) |
98.07 (10) |
588.4 (60) |
| S |
Ball – 1/2" (12.70mm) |
98.07 (10) |
980.7 (100) |
| V |
Ball – 1/2" (12.70mm) |
98.07 (10) |
1471 (150) |
|
| |
| |
| |
| |
